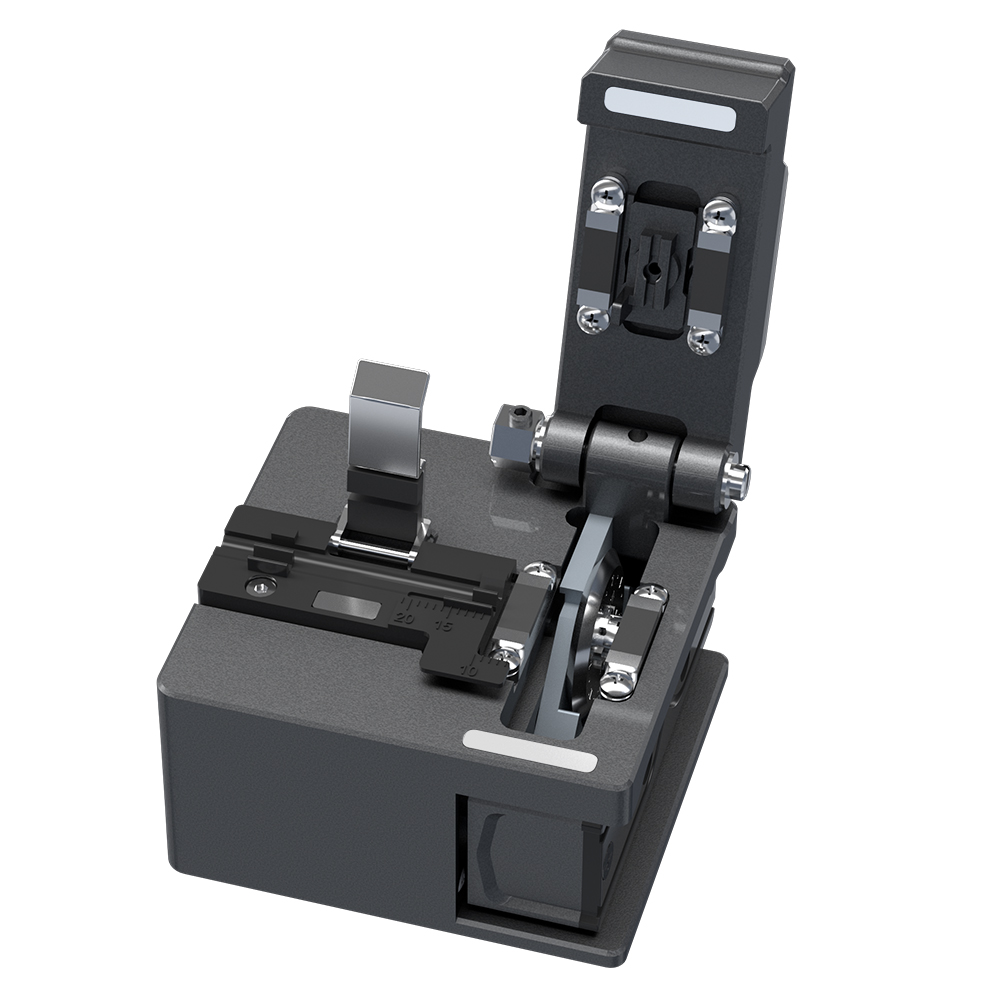

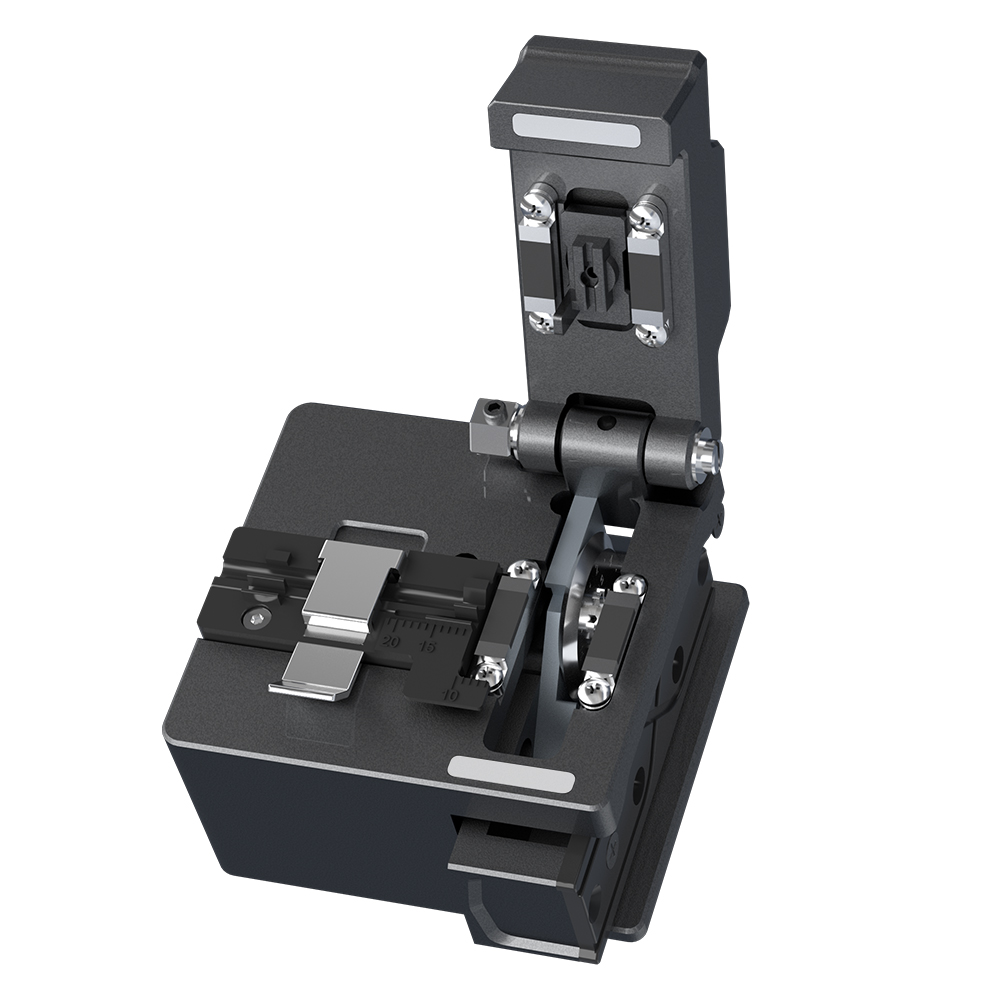

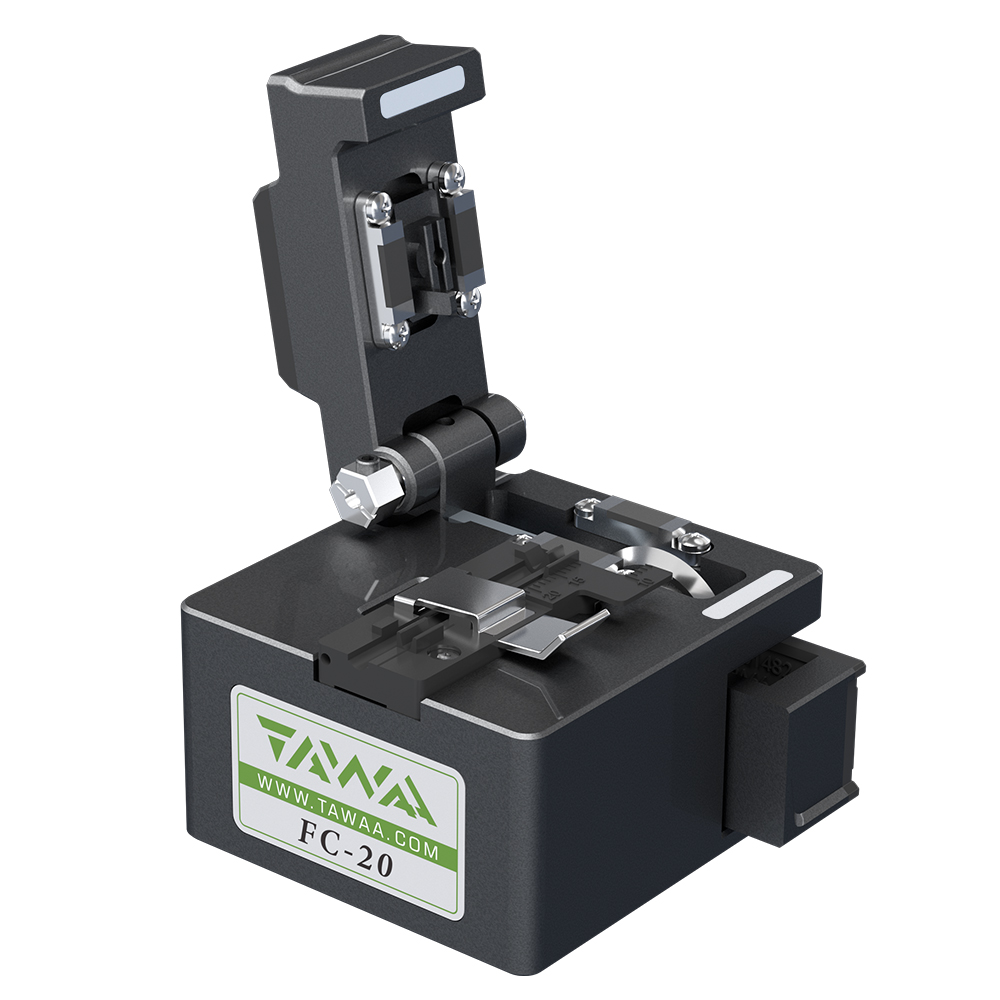

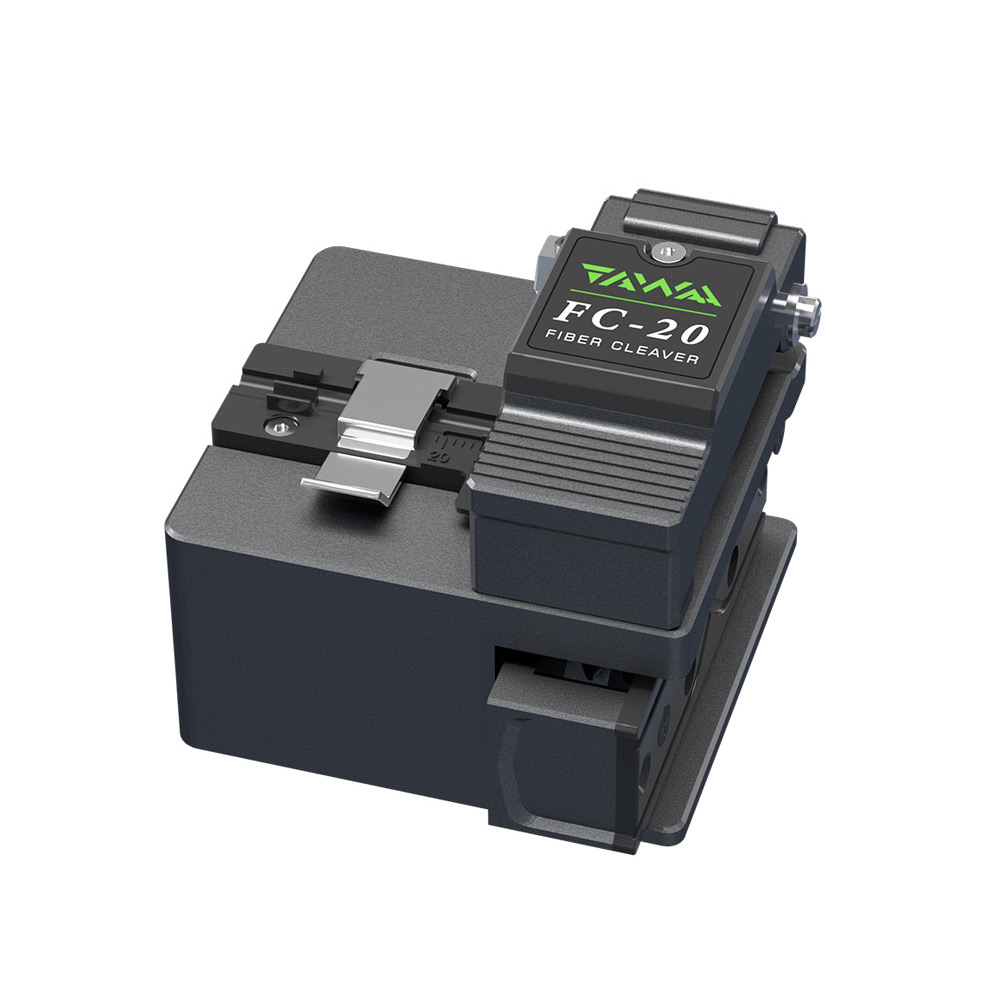

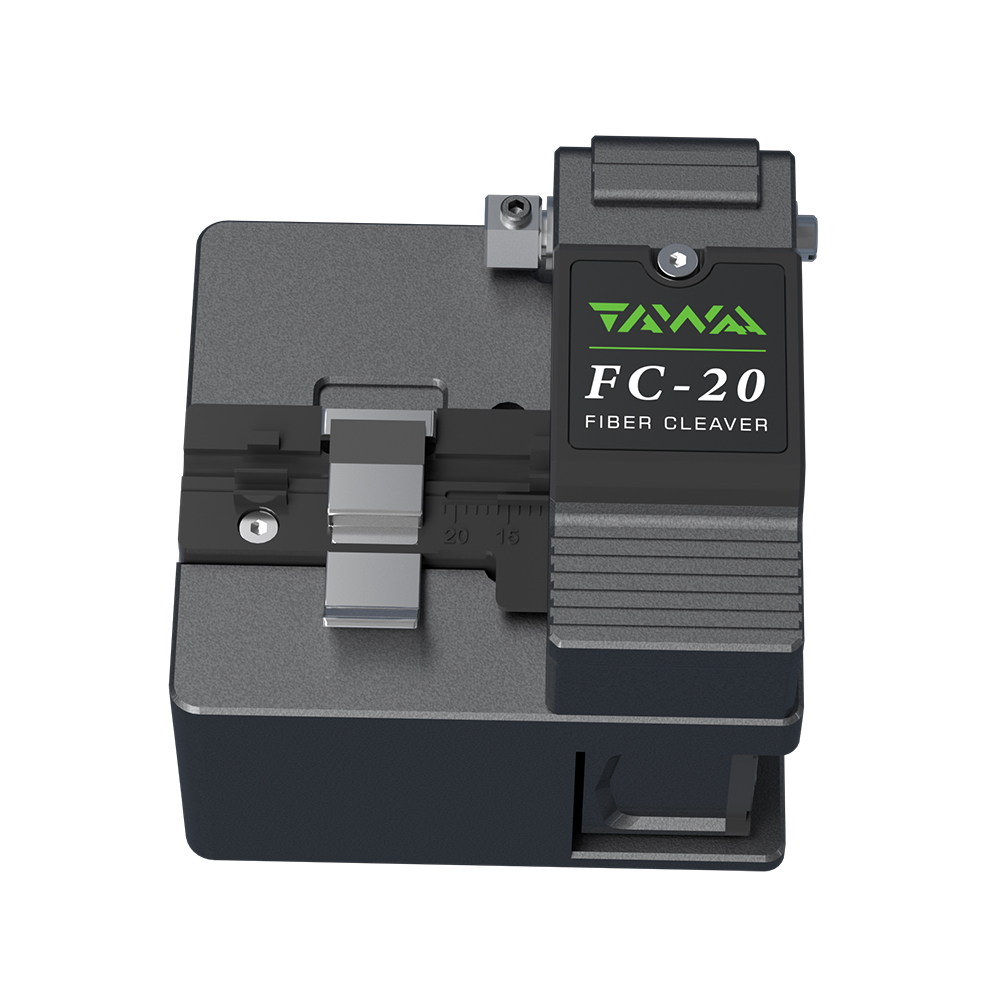

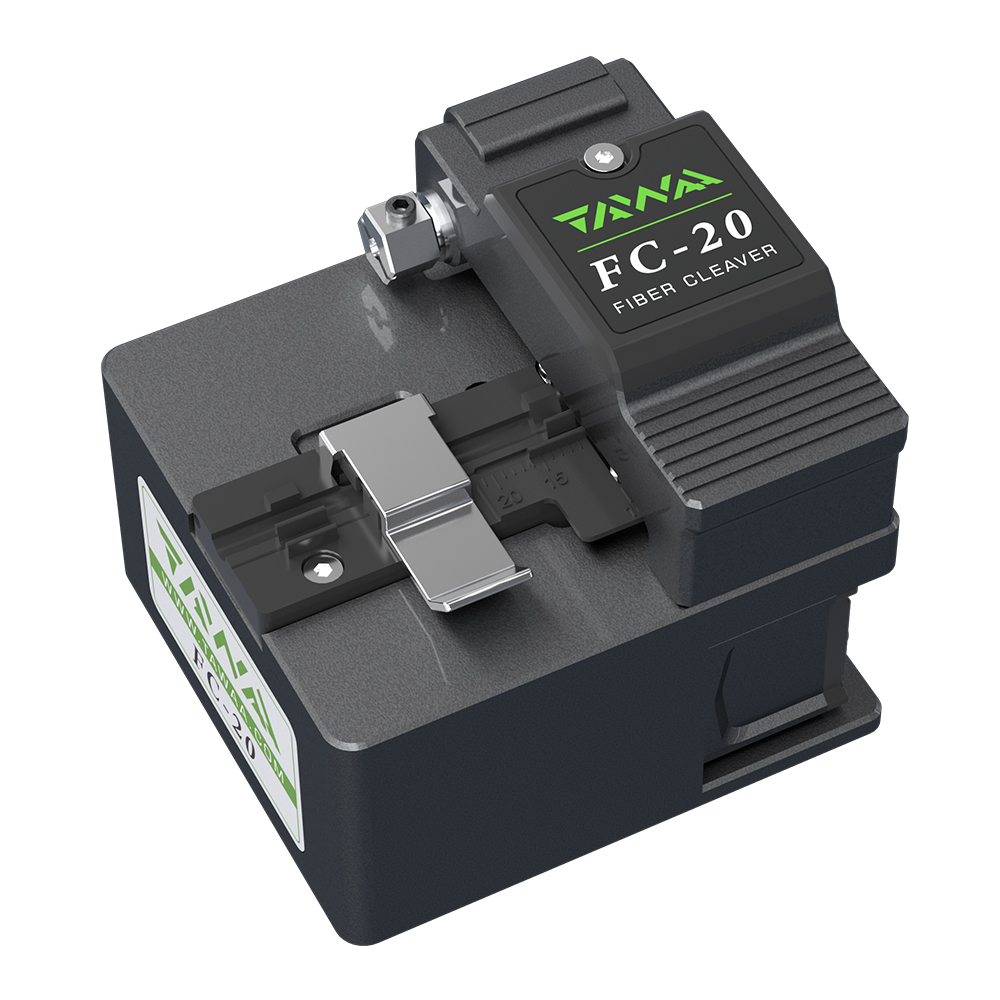

Handheld optical fiber cleaver FC-20

Blade life up to 48,000 times
Typical cleaving angle ≤0.5 degree
Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Palm-sized design, lightweight and portable
All-in-one holder is suitable for various optical fibers of 250~3.0mm
High-precision CNC machining andforming, excellent texture

Details

FC-20 High Precision Cleaver is an instrument for high precision fiber cutting.with a lightweight and hand held design. it is applicable to 250um.900um.3.0mm fiber cable and flat cable. Work efficiency can be maximized witheasy and simple 2 step operations. The blade provides over 48,000 fibercleaves by easy and simple blade position selection. Helped by unmatchedfunctionalities. users can achieve the most accurate cleaving and ideallyprepare their fusion splicing.

Product parameter：

Fiber Meterial	Single fiber
ladding Diameter	125μm
Cleaved Length	Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber Cable	Single fiber: 250μm, 900μm, 3.0mm / flat cable / Ribbon fiber: 2 to 12 fiber cable
Typical Cleaved Angle	Less than 0.5 Degrees ★①
Typical Blade Life	Total 48,000 fiber cleaves （replaceable） ★②
Off-cut Collector	/
Type of Offcut Bin	/
Auto Return	Pre-fitted
Dimension / Weight	55W 55D50H(mm) / 235g

★① The fiber cleave angle changes by operating environment

★② Blade life changes by operating environment

Product configuration：

Fiber cleaver FC-20	1
Carrying case	1
Quick guide	1
