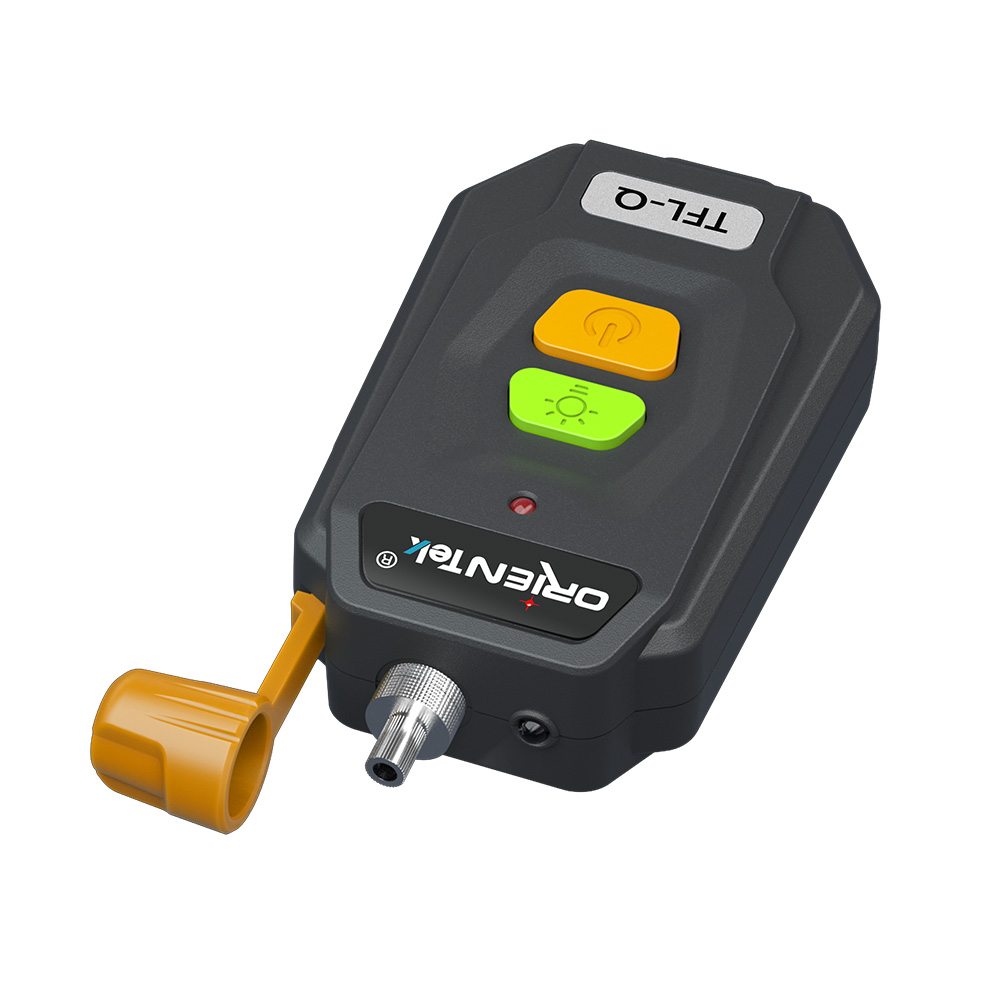

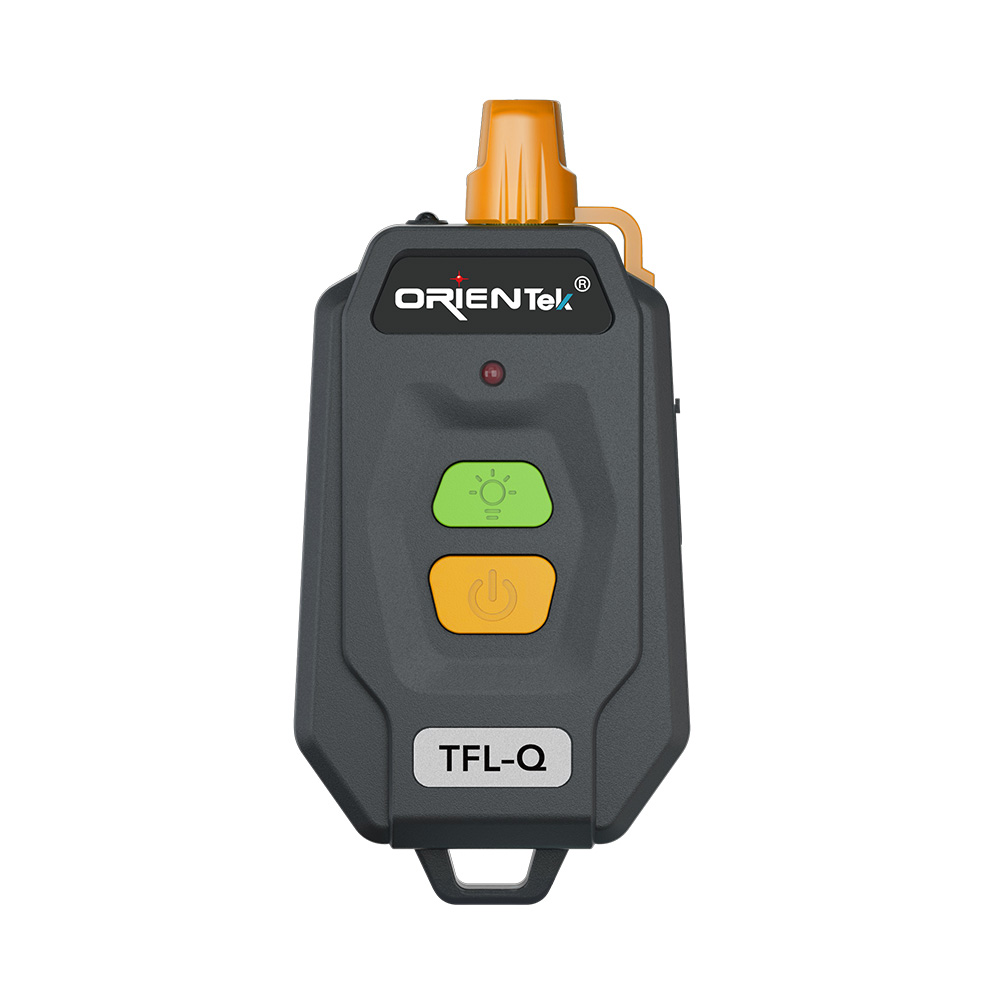

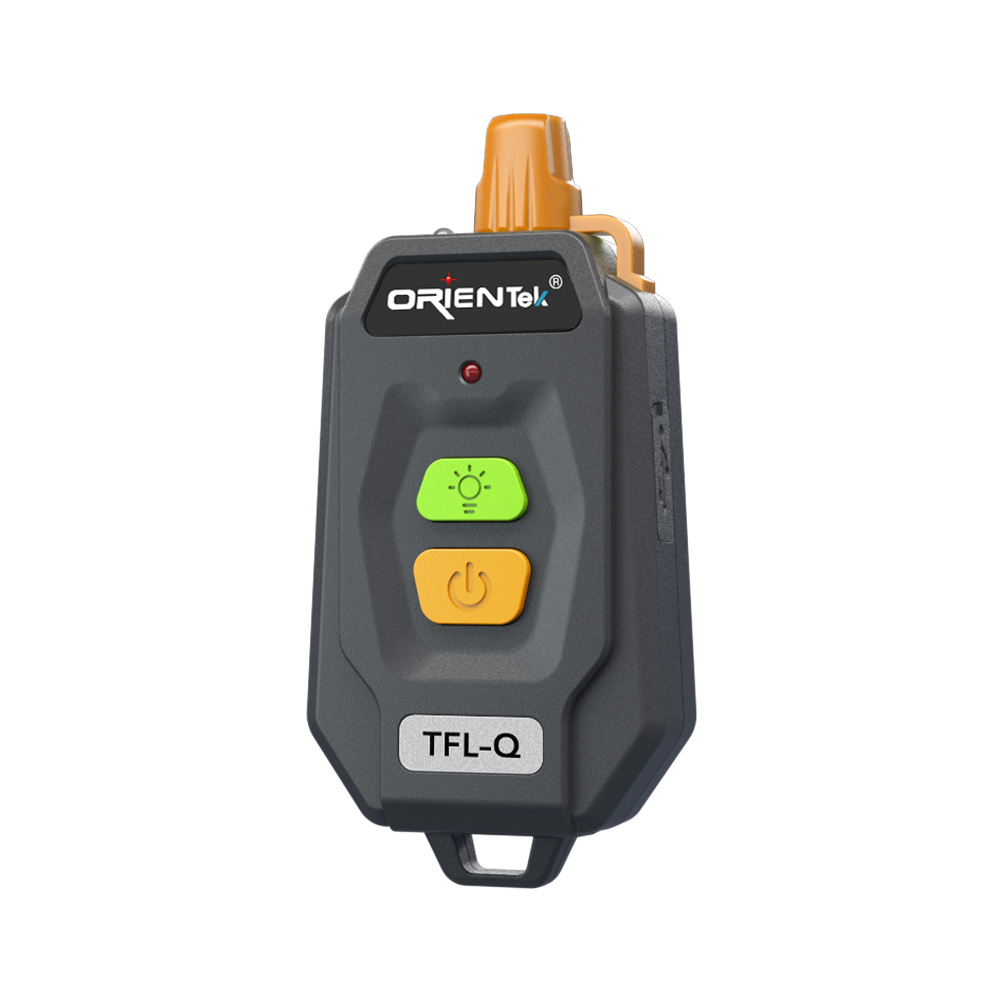

TFL-Q Mini Visual Fault Locator

● Pocket size design,mini and compact
● Testing distance is up to 30km,high stability
● Rubber dustproof cover
● 2.5mm universal connector,suitable for SC/ST/FC connector
● Strong and stable light source, strong penetrating power
● Be equipped with LED light,more convenient to work in the dark
● Built-in lithium battery,safe to use USB charging,convenient usage

Model TFL-Q-1 TFL-Q-10 TFL-Q-20 TFL-Q-30
Power range 1mW 10mW 20mW 30mW
Testing distance 3-5km 8-10km 15-20km 25-30km
Working time Battery type 7H 5H 4H 2H
Charging type 15H 10H 8H 4H
Wavelength 650nm
Laser type LD
Frequency CW / 2Hz
Working temperature -20 ~ +60 (℃)
LED light Yes

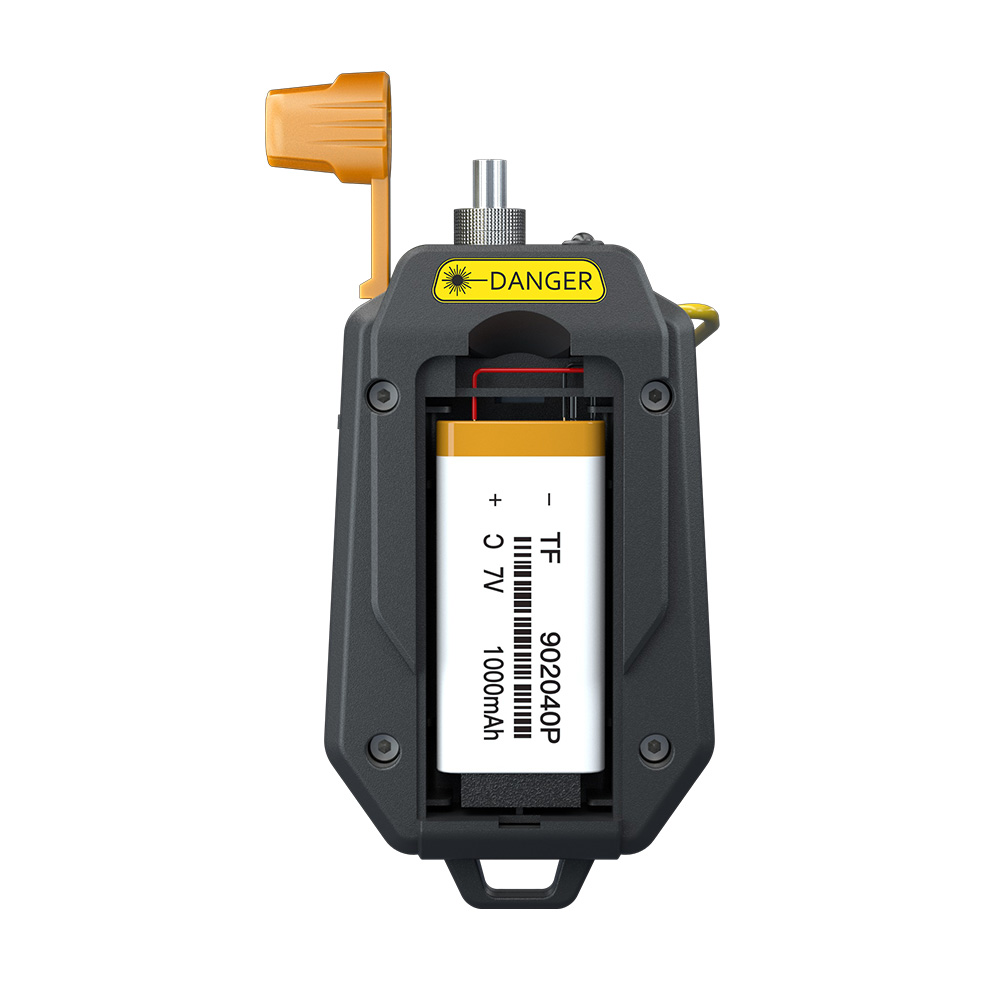

Power supply AAA 1.5V battery X2 / Lithium battery 1000mAh

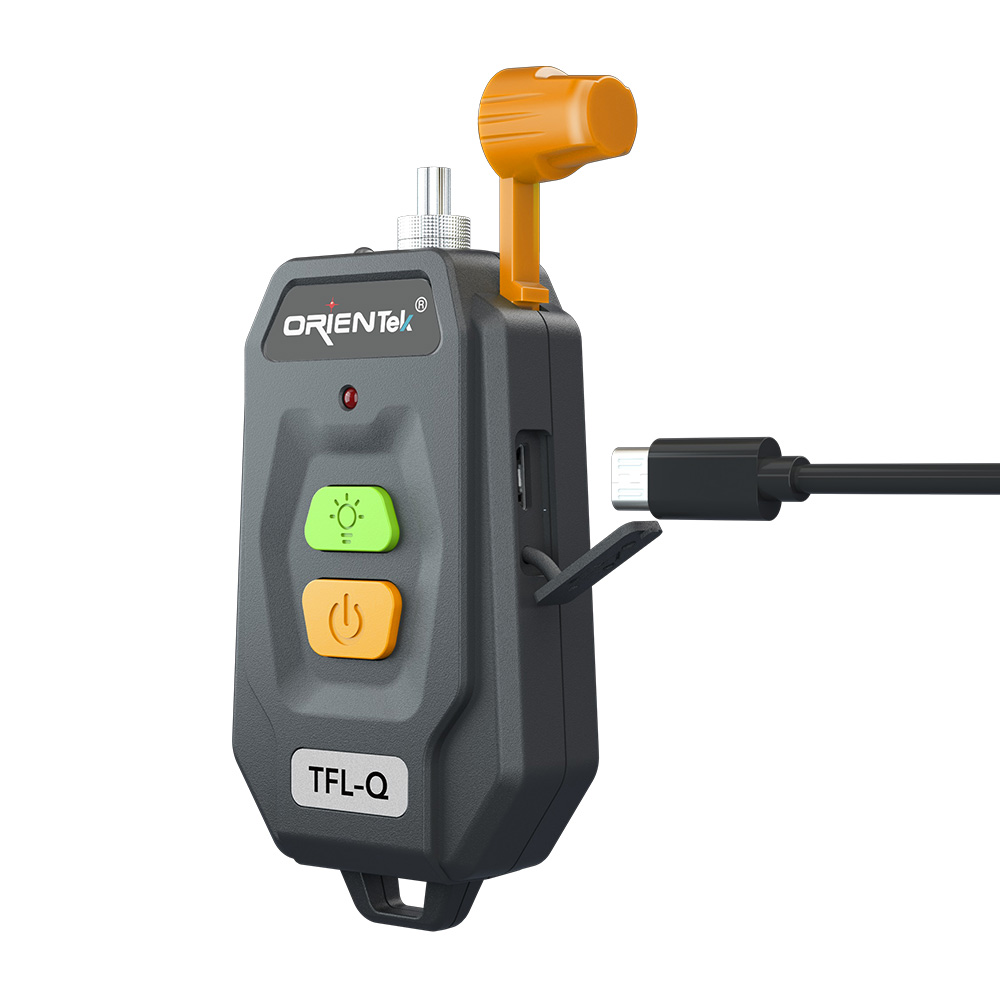

Charging port USB charging(only for charging type)
Dimension 93 x 46.5 x 21 (mm)
Weight 61 g (with battery)
