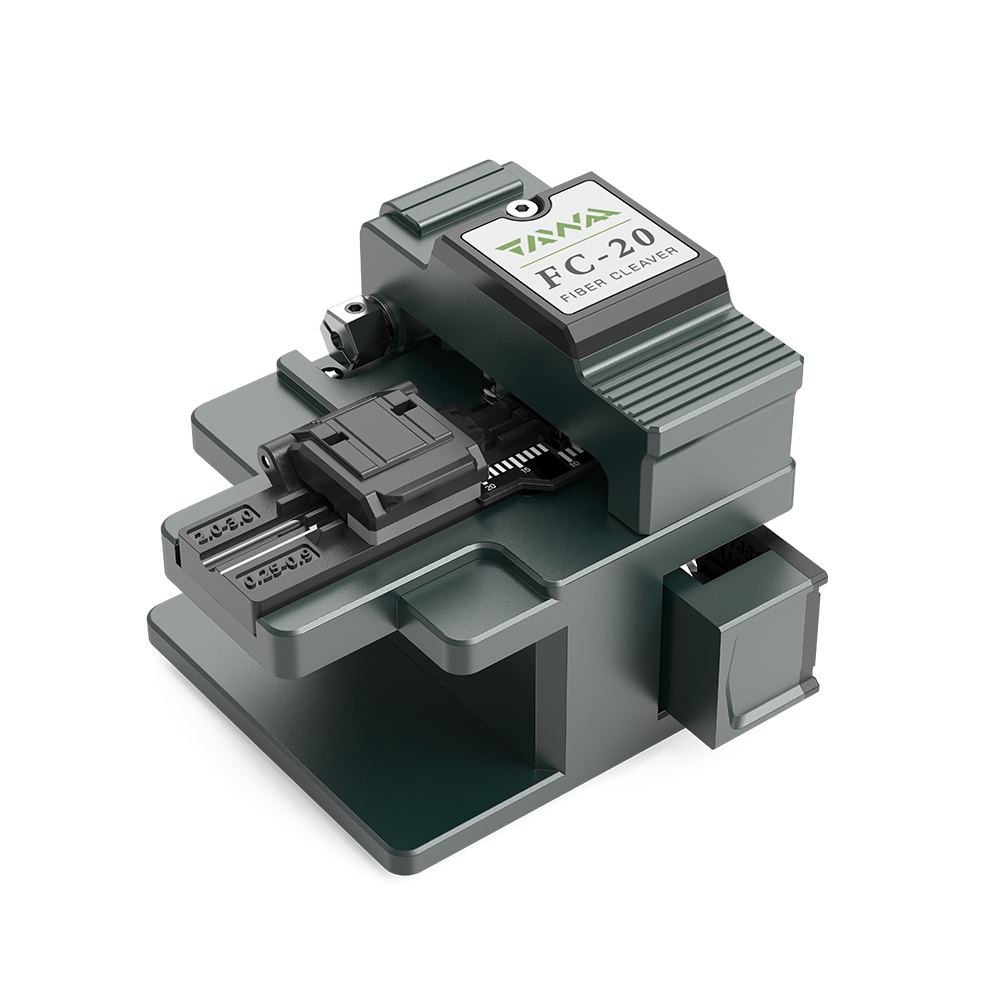

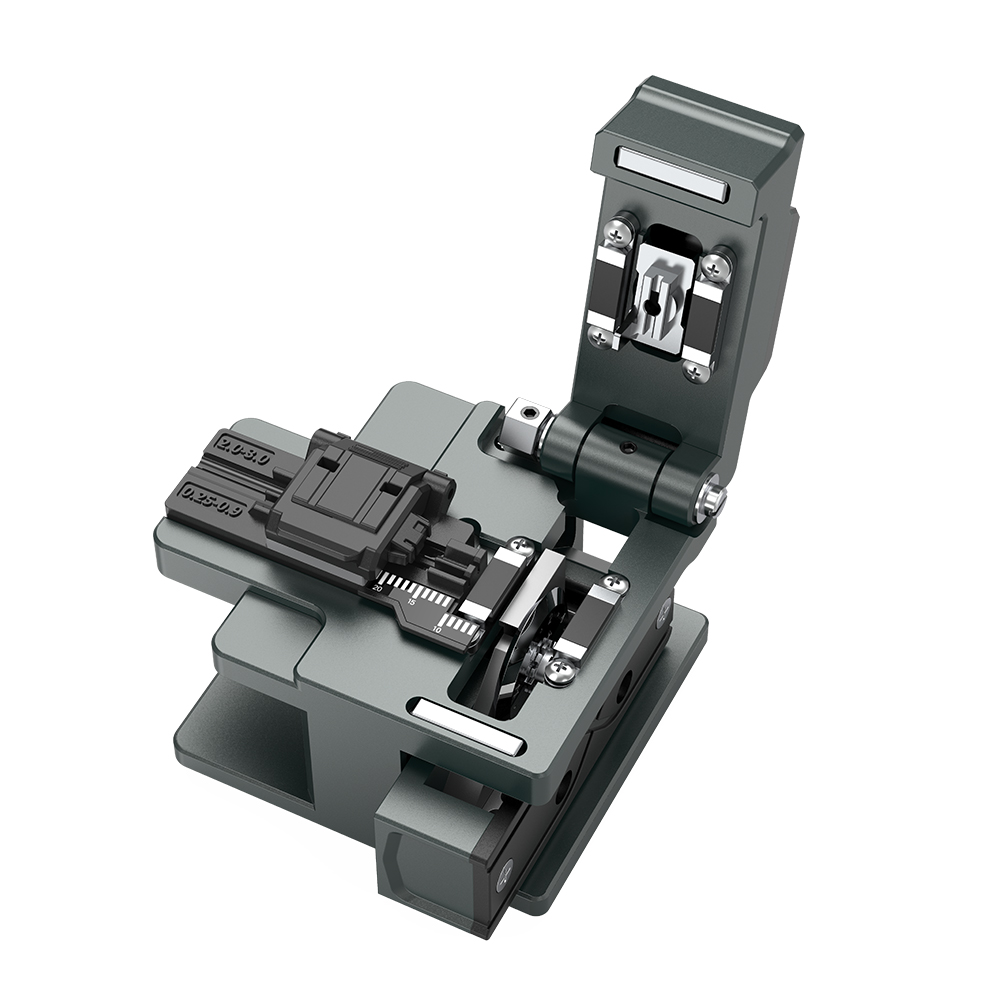

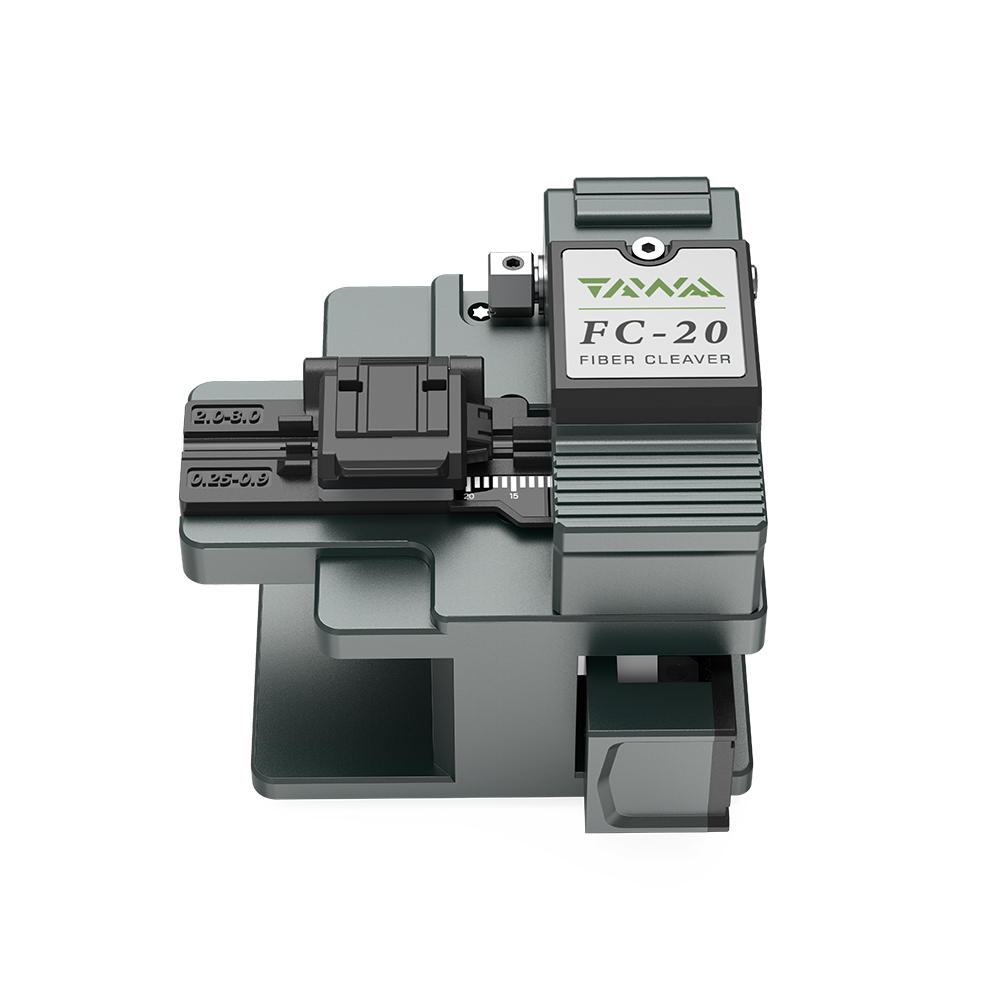

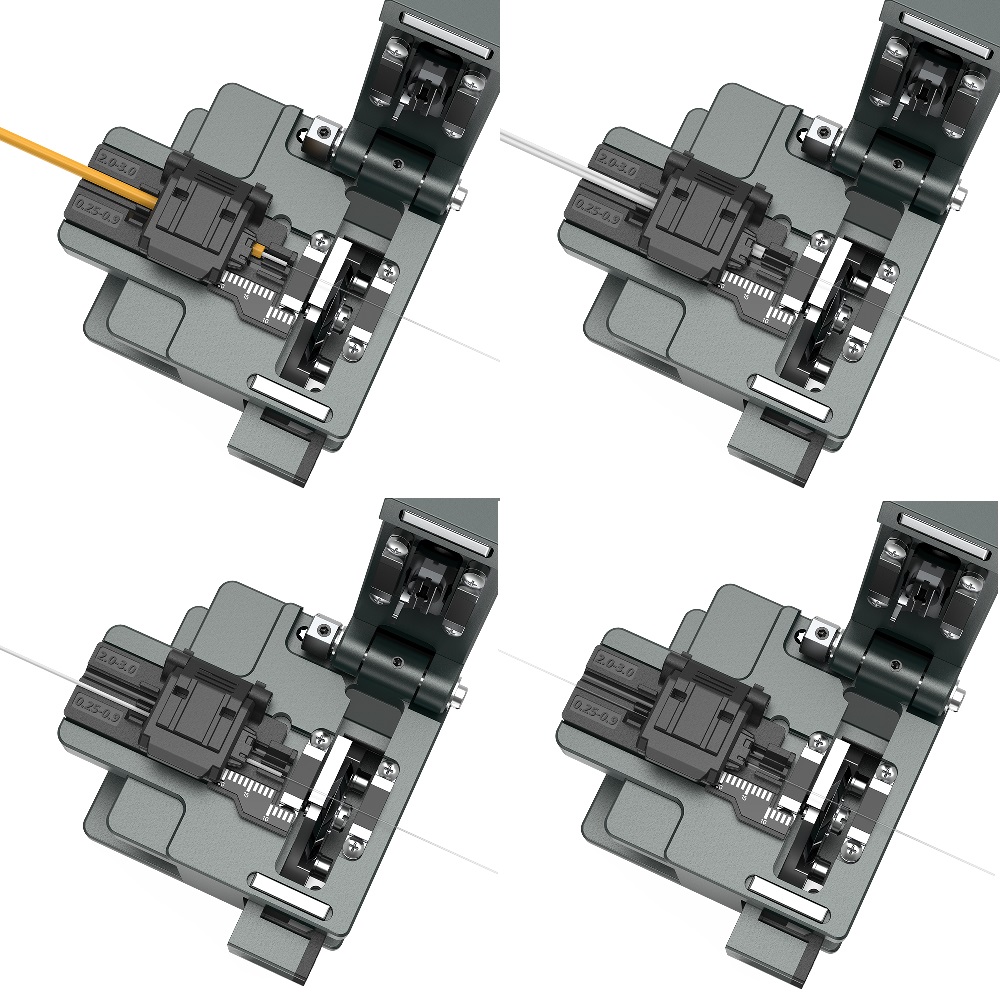

FC-20 High Precision Cleaver is an instrument for high precision fiber cutting.with a lightweight and hand held design. it is applicable to 250um.900um.3.0mm fiber cable and flat cable. Work efficiency can be maximized witheasy and simple 2 step operations. The blade provides over 48,000 fibercleaves by easy and simple blade position selection. Helped by unmatchedfunctionalities. users can achieve the most accurate cleaving and ideallyprepare their fusion splicing.
| Fiber Meterial | Single fiber |
| ladding Diameter | 125μm |
| Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |

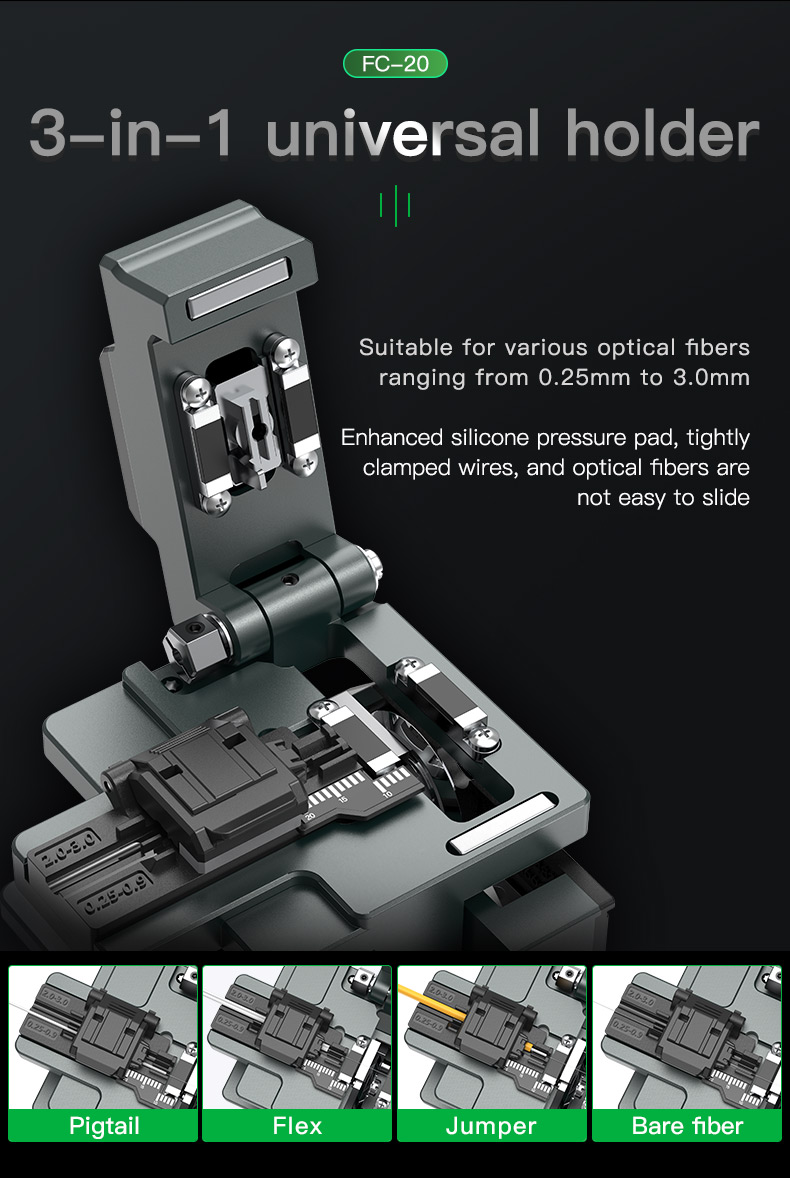

| Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm / flat cable / Ribbon fiber: 2 to 12 fiber cable |

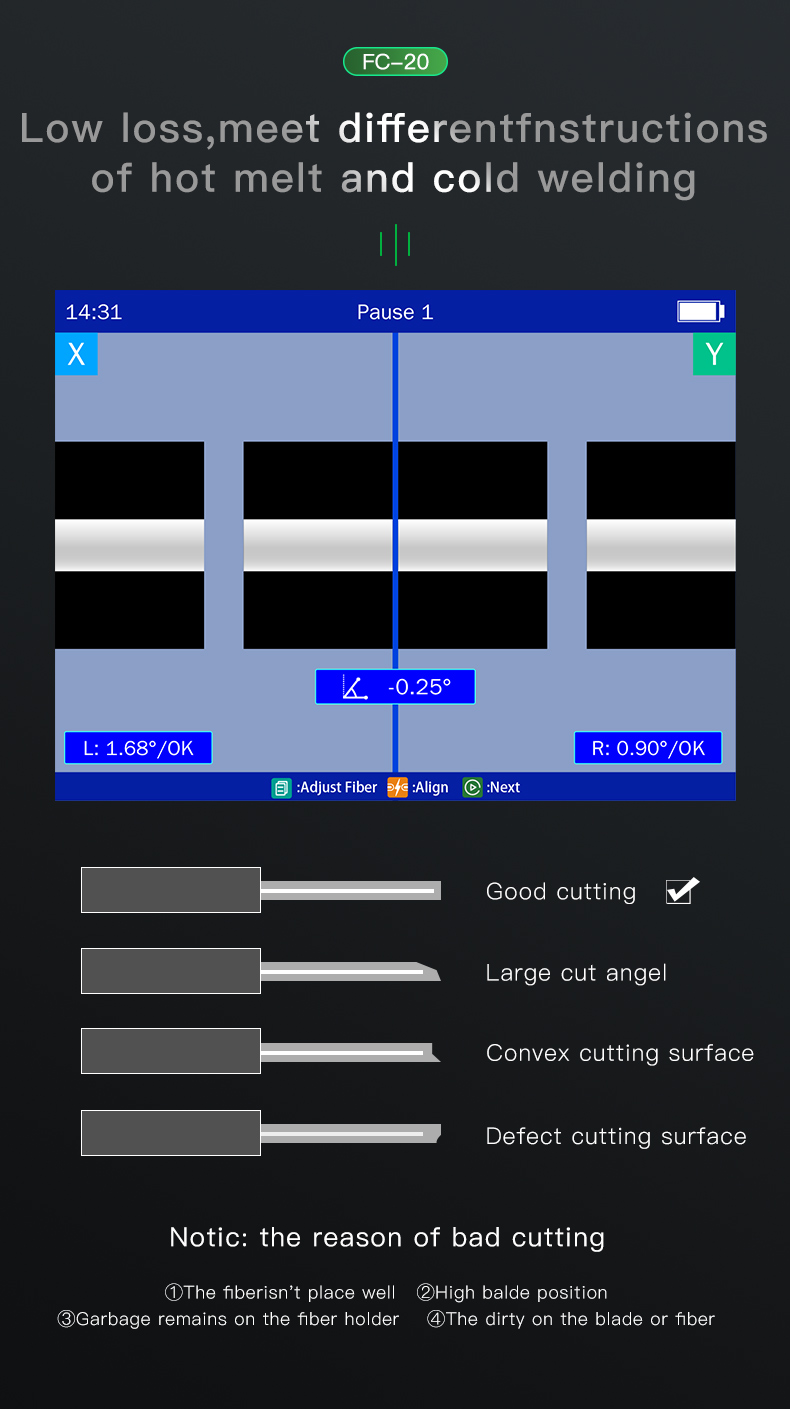

| Typical Cleaved Angle | Less than 0.5 Degrees ★① |

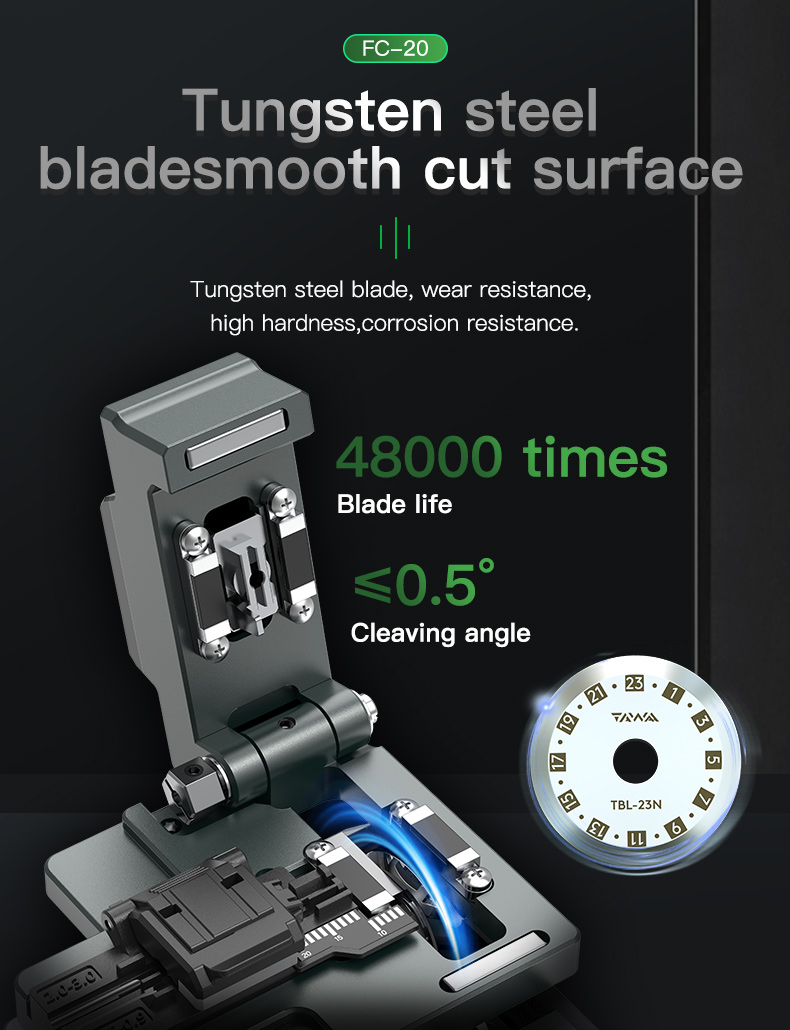

| Typical Blade Life | Total 48,000 fiber cleaves （replaceable） ★② |
| Off-cut Collector | / |
| Type of Offcut Bin | / |

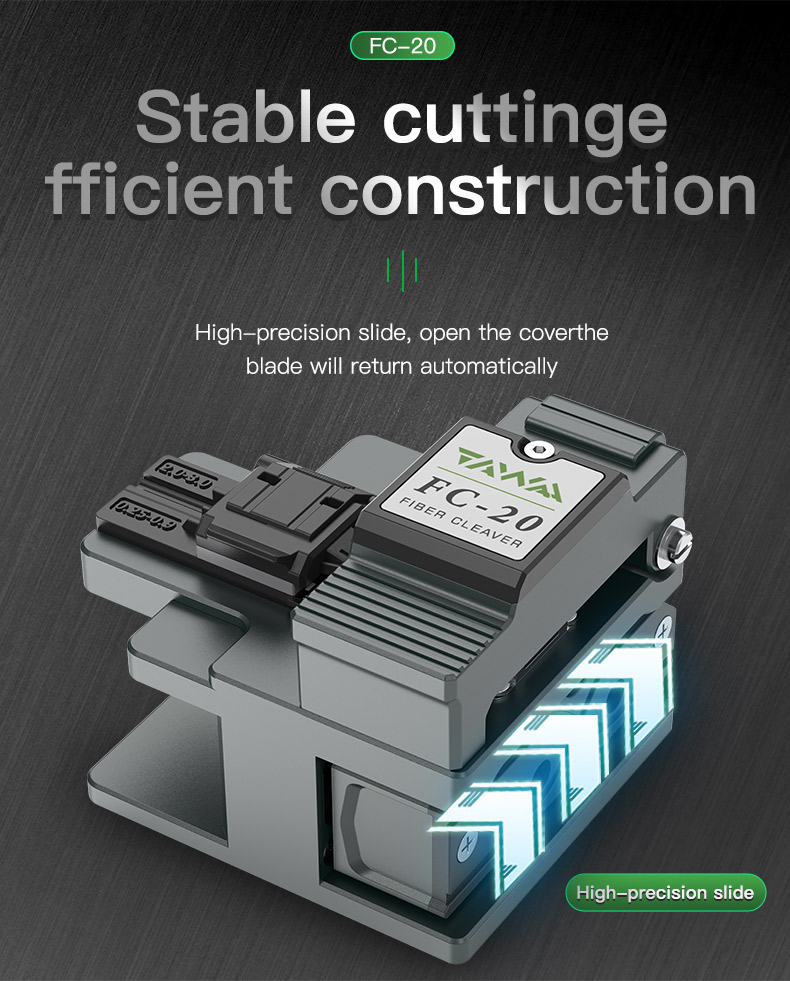

| Auto Return | Pre-fitted |

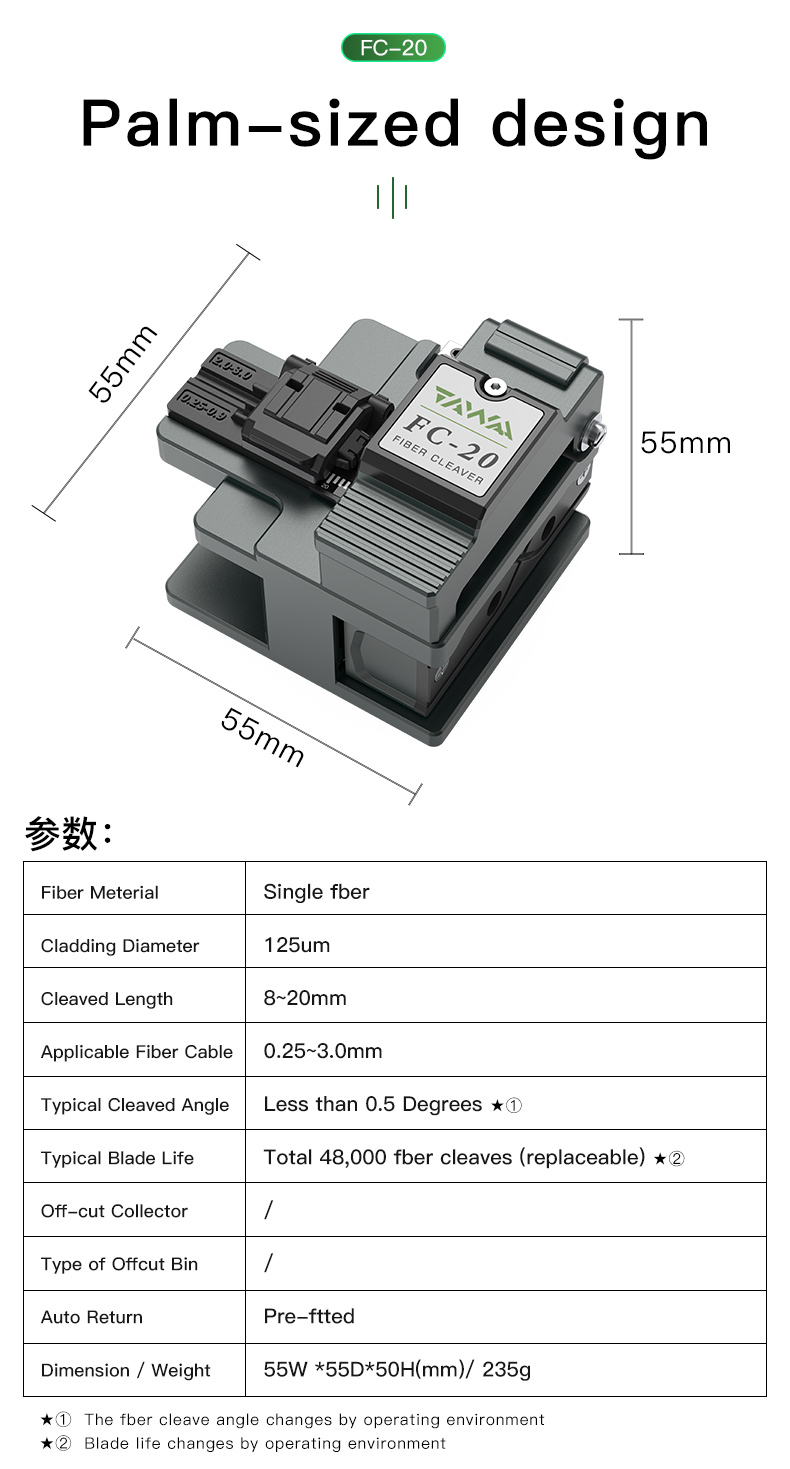

| Dimension / Weight | 55W *55D*50H(mm) / 235g |
★② Blade life changes by operating environment
| Fiber cleaver FC-20 | 1 |

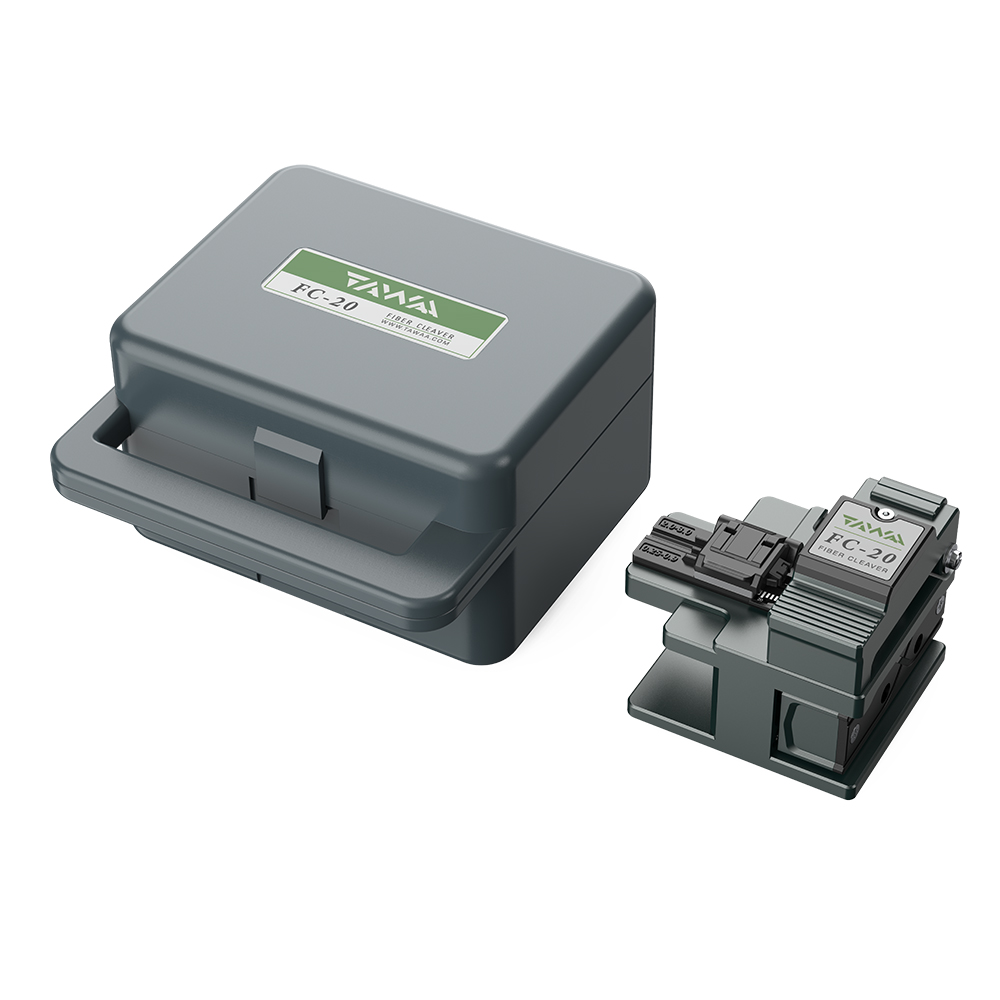

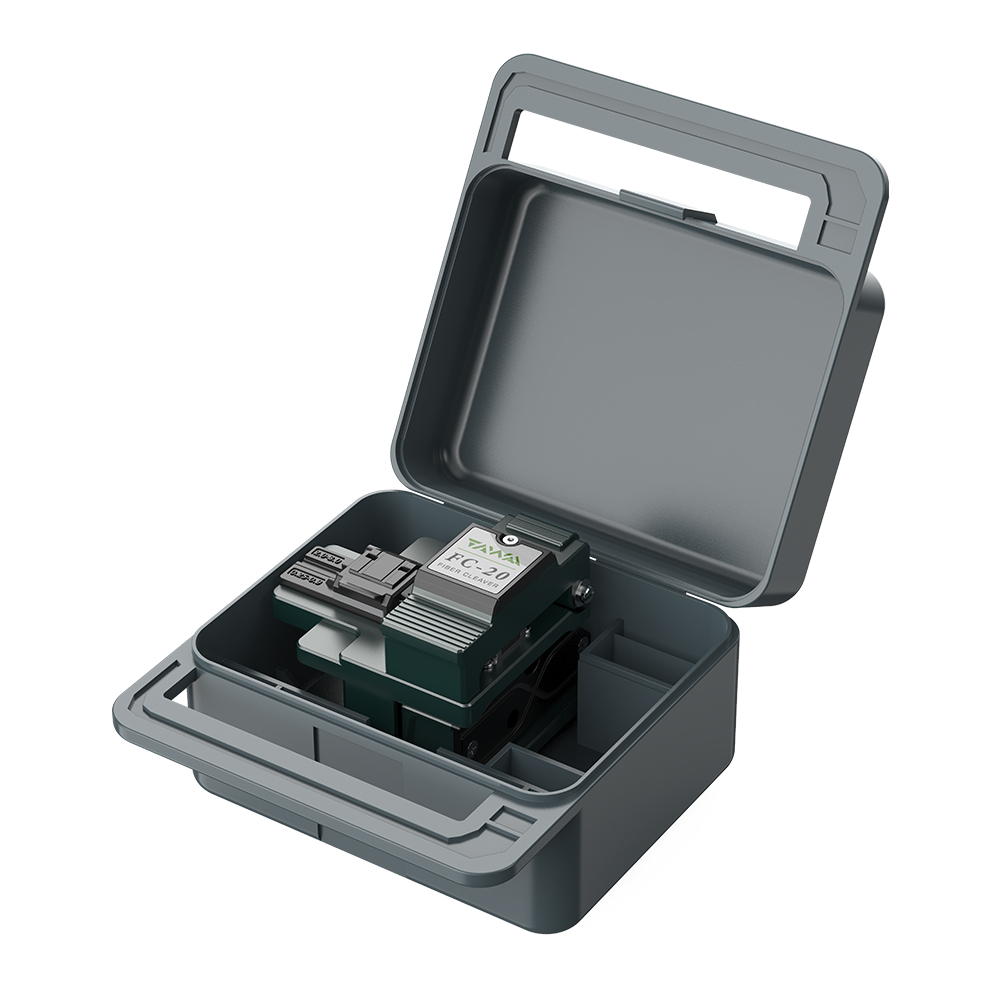

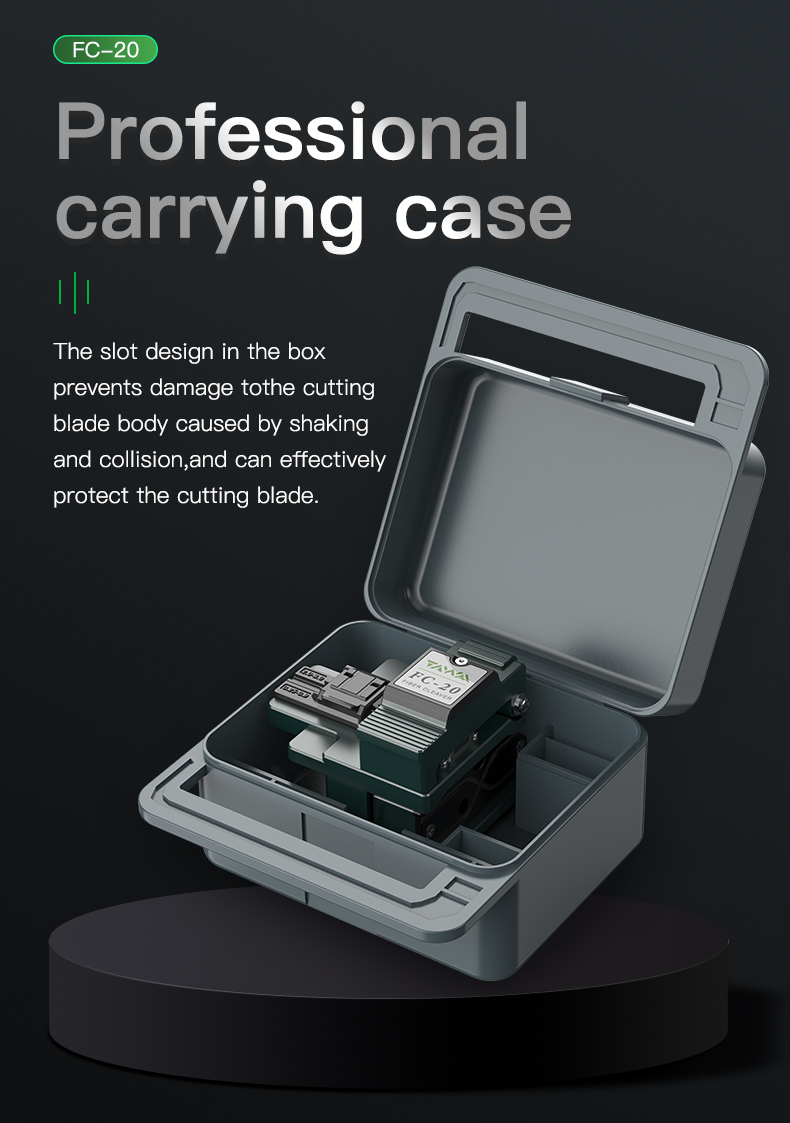

| Carrying case | 1 |
| Quick guide | 1 |
